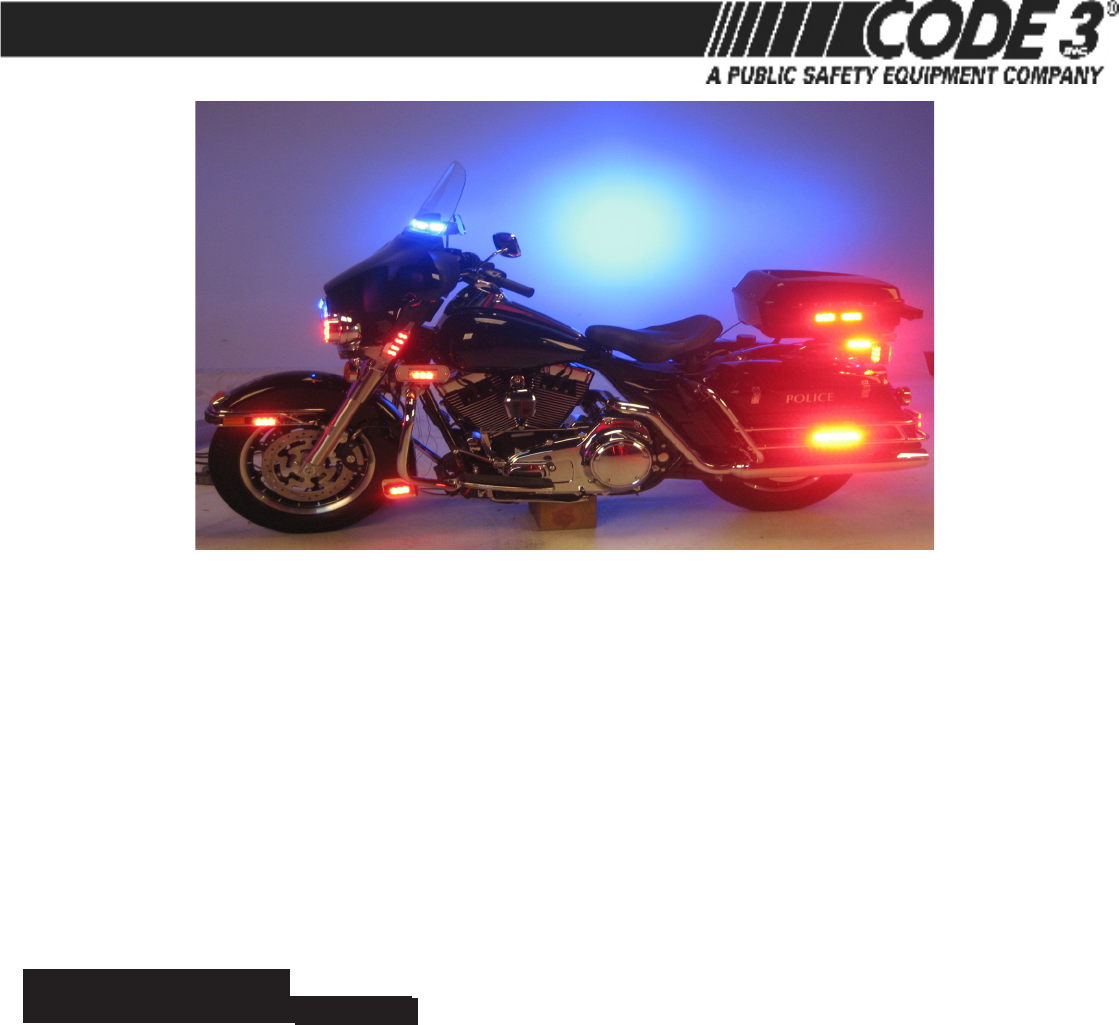

HARLEY DAVIDSON MOTORCYCLE EQUIPMENT INSTALLATION MANUAL TABLE OF CONTENTS:1. Front lighting option install

NOTES: This page provided for installation notes

NOTES: This page provided for installation notes

Code 3® is a registered trademark of Code 3, Inc., a subsidiary of Public Safety Equipment, Inc.PRODUCT RETURNSIf a product must be returned for repai

Par 36 (7) led light head1. Install the wiring terminations provided within the LED assembly.2. Place retainer ring against back of LED housing with

Front End Side Lighting OptionsFront fork led light head1. Loosen top Fork Torx head bolt 2. Loosen bottom Fork Torx head bolt Note: Front Fork light

“On The Rail” Rear Lighting Options Common Backing Plate and Bracket are used on all Rear lighting application options.T57098

Common Backing Plate and Bracket are used on all inside-the-rail Side lighting application options.T57088 Backing plateT57087 Bracket (Chrome)NOTE: Al

Common Backing Plate is used for all surface-mount side rail lighting application options. T57094 Backing plateNOTE: All clamping parts of assembly to

Radio Box Lighting OptionsON BOX SUPPORT RAILS:1. XT3 light head (Mounted with led down) (Mounted with led up)HD6103 2. Optix 3up

Siren SelectionComplete Speaker Installation KitSIREN OPTIONS IN THE BOX: SIREN OPTION ON FACTORY MOUNT:Siren # 4022 Multi-Purpose Sire
